Electrical Power Flat Wire ACSR Cable
Standard ACSR Conductor, Aluminum Conductor Steel Reinforced
Certification: ISO9001/ISO14001 /OHSAS18001/CCC
ODM&OEM: Yes
Transport Package: Wooden drum, iron wooden drum or according to your requirements
- Ruiyang Group
- Shenyang, China
- 15 working days after payment is received
- 5000 kilometers per week
- Information
- Download
Electrical Power Flat Wire ACSR Cable
Product Description

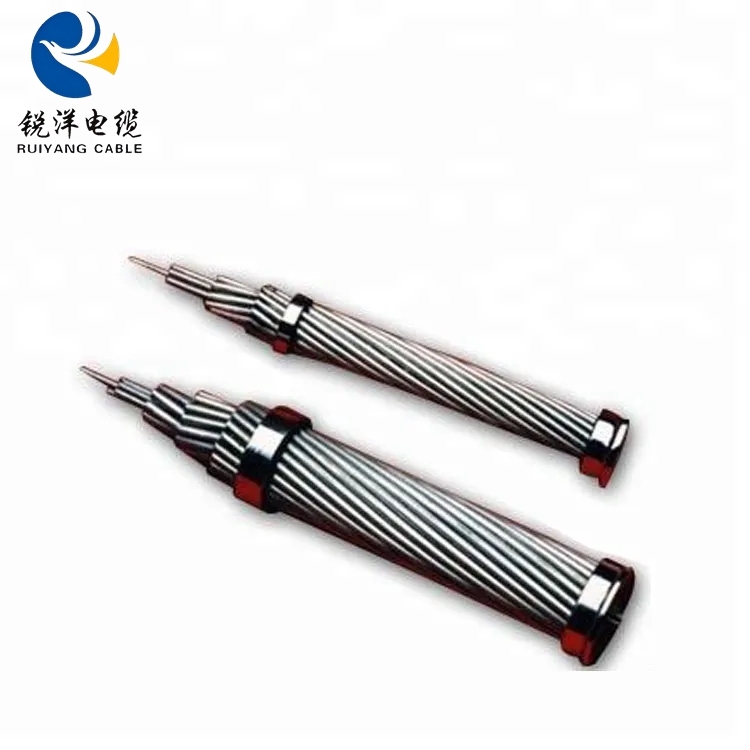

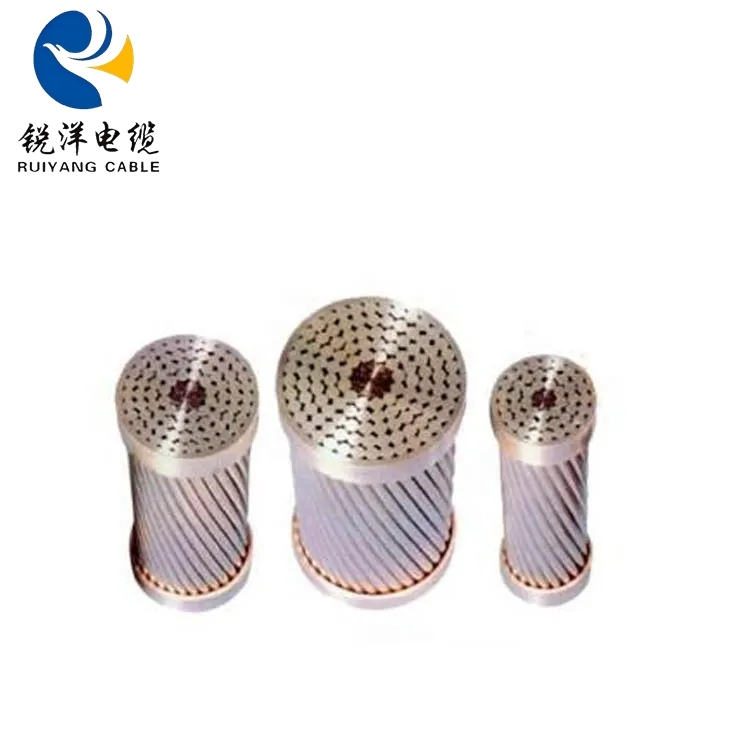

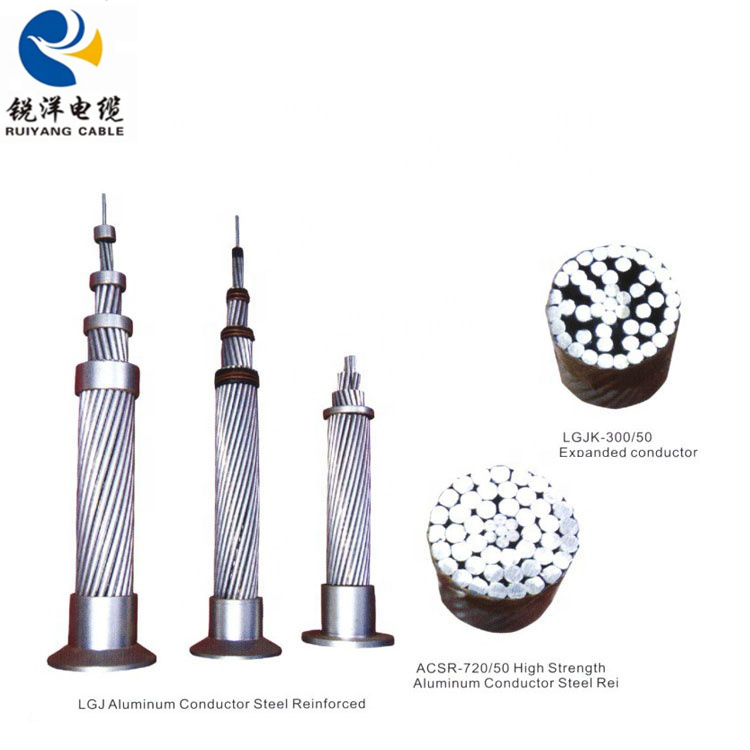

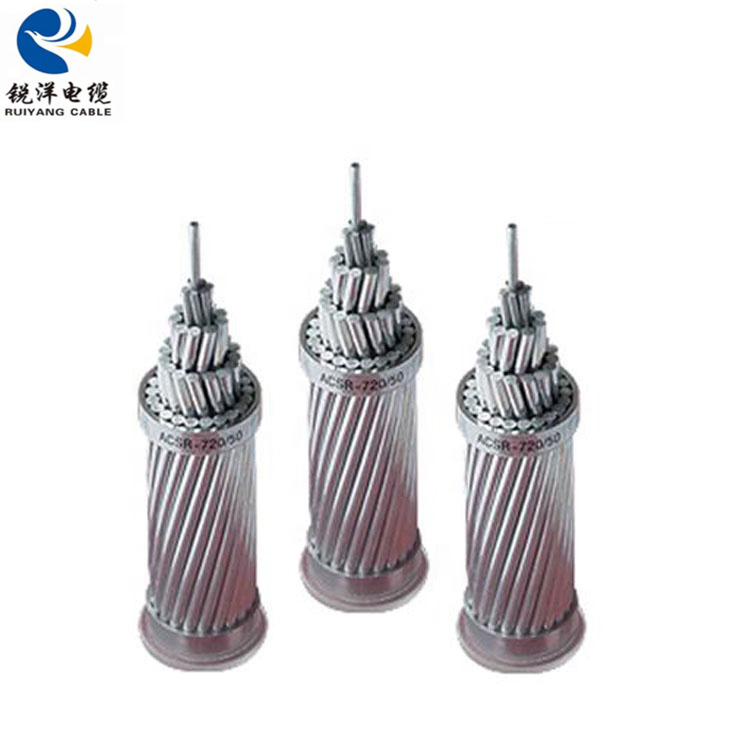

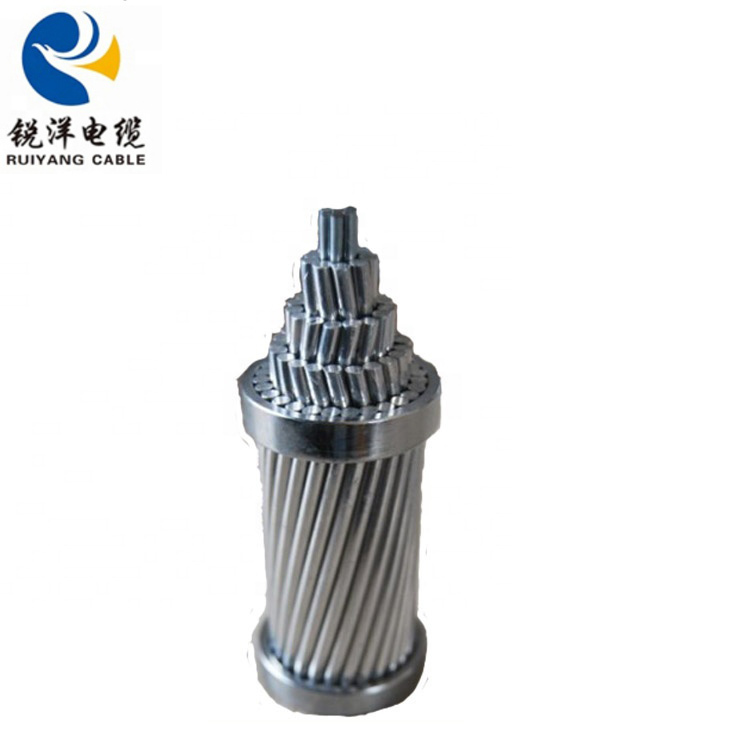

ACSR (Aluminum Conductor Steel Reinforced) Cable is an overhead electrical power transmission cable designed for long-span aerial installations. It consists of a central core of galvanized steel wires surrounded by layers of high-purity aluminum wires. This combination leverages the high tensile strength of steel and the excellent conductivity and lightweight properties of aluminum, making it ideal for power distribution and transmission lines across rivers, valleys, plains, and industrial zones. ACSR cables are widely used in urban grids, rural electrification, railway traction systems, and renewable energy projects due to their durability, corrosion resistance, and adaptability to varying environmental conditions.
Detailed Description
The product is used in the field of aerial power line.
Manufacturing standard: The standard as GB/T1179-2008 it is equal to IEC207-1966 and IEC209-1966.
Technical performance and related data:
Tensile strength should be not less than GB3955-2008 LY9 min tensile strength value of 95%.
The winding performance shall be in accordance with the provisions of LY9 in GB3955-2008.
The resistivity of 20℃ is not larger than 0.028264 mm2/m.
Related products
| Type | Description | Area of conductor (mm2) | Structure (No./diameter)(mm) |
| LJ | Aluminium stranded conductors(ASC) | 16 to 800 | 7/1.17 to 61/4.10 |
| LJX | Rare-earth aluminium alloy stranded conductors | 16 to 800 | 7/1.17 to 61/4.10 |
| LGJ | Aluminium stranded conductors steel-reinforced(ACSR) | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
| LGJF | Corrosion-proof aluminium stranded conductors steel-reinforced | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
| LGJX | Rare-earth aluminium alloy atranded conductors | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
Company profile
Applications
Product categories
Production process
Product packaging
Our Services
1. Quickly and professional response.
2. China manufacturer with 8 years experience.
3. Excellent quality with reasonable price.
4. Sufficient support for our tendering representatives.
5. OEM service available based on official & legal authorization.
6. Strict quality control system.
7. Faster lead time than our competitors.
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10. 12 months quality guarantee after delivery.
Served Customers
FAQ
Q1: What kind of guarantee do you provide?
A1: 1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the cable which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
