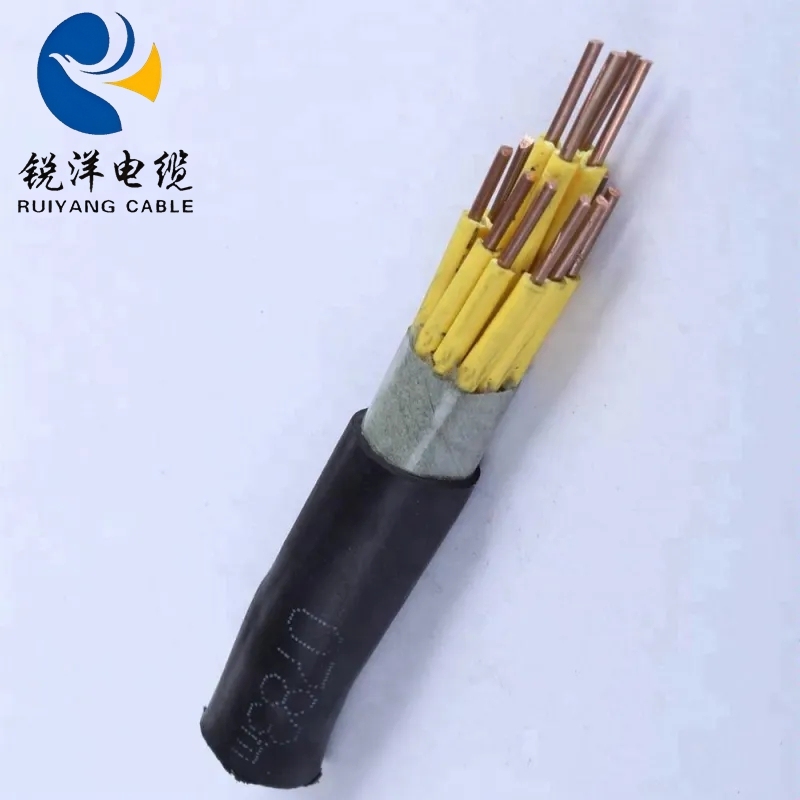

LSOH Fire-Resistant Control Cable

LSOH Fire-Resistant Control Cable

Product Description

The LSOH Fire-Resistant Control Cable is engineered for critical applications where circuit integrity and personnel safety are paramount. This cable is designed to maintain signal and power transmission even when exposed to direct flame, ensuring the continuous operation of essential life safety and control systems during a fire emergency. Its Low Smoke, Zero Halogen (LSOH) sheath and insulation materials prevent the emission of dense, toxic smoke and corrosive gases when burning, significantly improving visibility for safe evacuation and protecting sensitive electronic equipment from corrosive damage.

Control cables are PVC insulated and PVC sheathed control cables suitable for industrial and mining enterprises, energy and transportation departments, and for control and protection of lines with AC rated voltage below 450/750V.

The core of the control cable is copper, with a nominal section of 2.5mm² and below, and 2 ~ 61 cores; 4 ~ 6mm², 2 ~ 14 cores; 10mm², 2 ~ 10 cores. The working temperature of the control cable: the rubber insulation is 65 ° C, and the PVC insulation is 70 ° C and 105 ° C. The control cables used in the computer system are generally PVC, polyethylene, cross-linked polyethylene and fluoroplastic insulated products.

Performance characteristics:

1. DC resistance: 20 ℃, 0.4mm copper wire, less than or equal to 148 Ω /km, 0.5mm copper wire, less than or equal to 95 Ω /km.

2. Electrical strength of insulation: 1kV non breakdown between conductors for 1min conductor and 3kV non breakdown between shielding for 1min.

3. Insulation resistance: each core wire is grounded with other cores, and the control cable is greater than 10000m Ω Km, HYAT cable is greater than 3000m Ω km.

4. Working capacitance: average 52 ± 2nf/km.

5. Far end crosstalk defense: the average power of the specified combination at 150kHz is greater than 69db/km.

Company profile

Production Process

Product packaging

Our Services

1. Quickly and professional response.

2. China manufacturer with 8 years experience.

3. Excellent quality with reasonable price.

4. Sufficient support for our tendering representatives.

5. OEM service available based on official & legal authorization.

6. Strict quality control system.

7. Faster lead time than our competitors.

8. Cable solutions to your particular requirements.

9. Free sample is available with economic express fee.

10. 12 months quality guarantee after delivery.

FAQ

Q1: What kind of guarantee do you provide?

A1: 1. 100% high quality, all failed parts get free warranty within 30 days after received.

2. Accept 10 years warranty upon customer requirement.

3. Repairs parts are available within 10years; We will inform the EOL products to you from time to time.

Q2: What if the cable which we need have some differences on specifications from yours?

A2: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.

Q3: How can I get a sample to check your quality?

A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
