CU XLPE PVC Low Voltage Electrical Cable
Certification: ISO9001/ISO14001 /OHSAS18001/CCC
ODM&OEM: Yes
Transport Package: Wooden drum, iron wooden drum or according to your requirements
- Ruiyang Group
- Shenyang, China
- 15 working days after payment is received
- 5000 kilometers per week
- Information
- Download

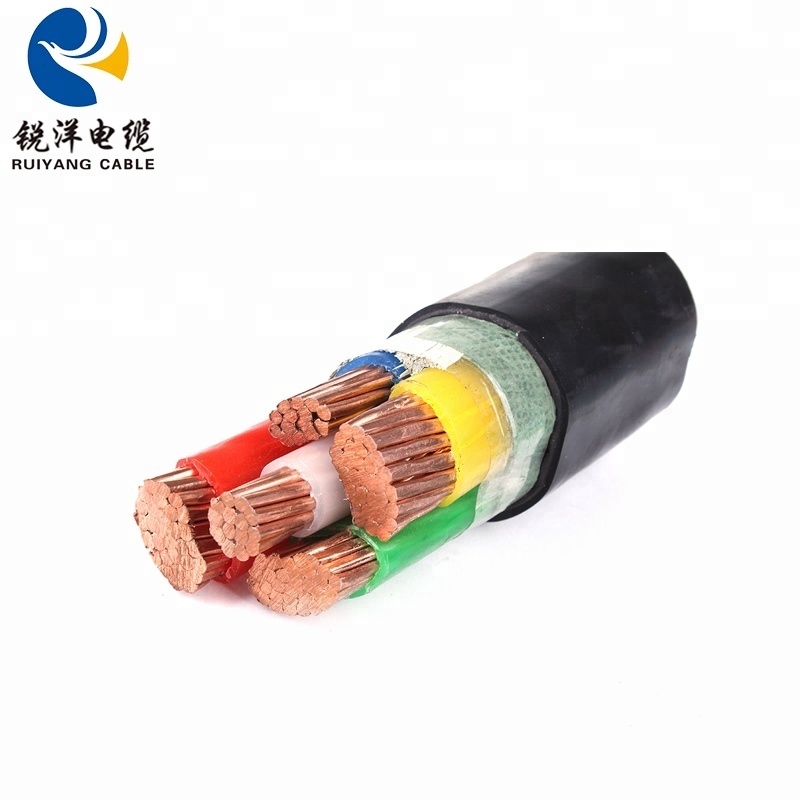

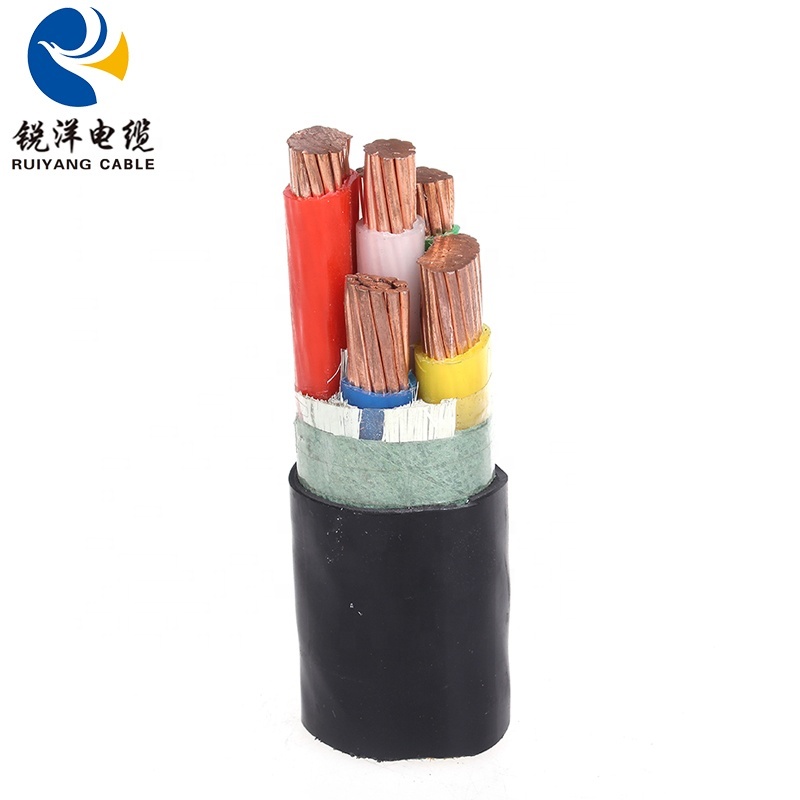

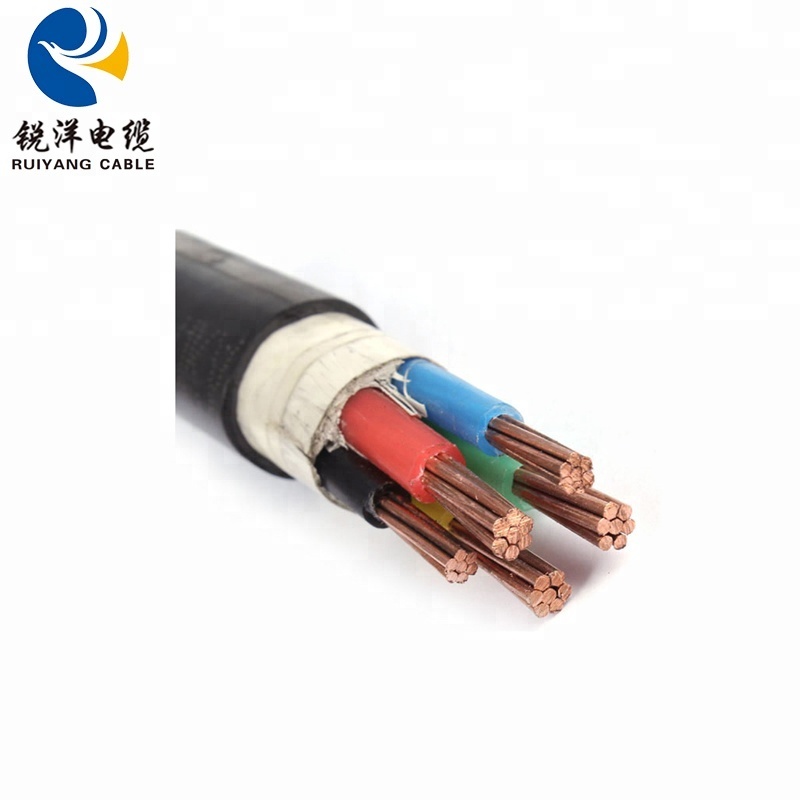

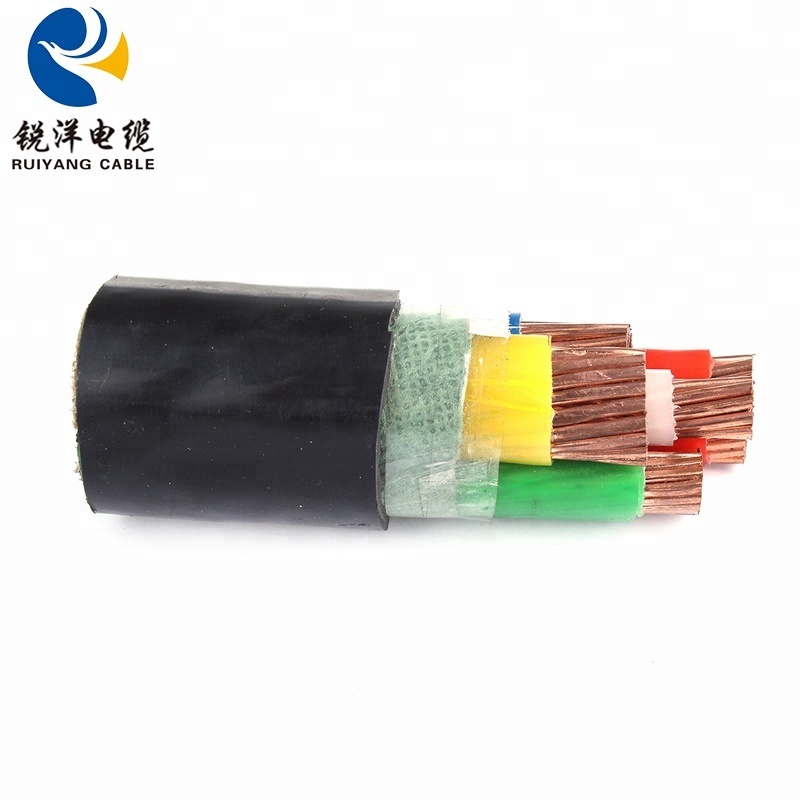

CU XLPE PVC Low Voltage Electrical Cable
Product Description
Our CU/XLPE/PVC 0.6/1kV Low Voltage Power Cable is engineered for reliable and efficient electrical distribution in fixed installations. This cable features a high-conductivity copper (CU) conductor, insulated with cross-linked polyethylene (XLPE), and protected by a durable polyvinyl chloride (PVC) outer sheath. This robust construction ensures excellent thermal stability, high current-carrying capacity, and superior resistance to mechanical stress, abrasion, and common environmental factors, making it a cornerstone for safe power delivery.
Use characteristics:
(1) The long-time working temperature of cable should not be higher than 90℃.
(2) When core is in short-circrit (max 5s) the temperature should not exceed 160℃.
(3) While installation the ambient temperaure should not be lower than 0℃, and the bending radius should not be less than 10 tines of outer diameter of cable.
(4) Bending radius:
Bending radius of single-core cable is 20(d+D)±5%
Bending radius of multi-core cable is 15(d+D)±5%
D=Actual outer diameter of cable sample (mm)
d=Actual diameter of the conductor (mm)
(5) Not restricted by the difference of level along the rout
| Type | Desciption | Rated Voltage | NO. of Cores | Nomibal section(mm2) | Applications | |||
YJV | Cu conductor, XLPE insulated. PVC sheathed electric cable | 0.6/1kV | 1,2,3,4 | 1.5 to 400 | For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. | |||
| 3+1 | 3×4+1×2.5 to 3×400+1×185 | |||||||
| YJV22 | Cu conductor, XLPE insulated steel tape armoured PVC sheathed electric cable | 0.6/1kV | 3 | 1.5 to 400 | Suitable for burying in ground. Able to bear external mechanical forces but large pulling forces. | |||
| 4 | 4 to 240 | |||||||
Detailed Description
XLPE insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.
The core is insulated with thermosetting Cross-Linked Polyethylene (XLPE), which offers exceptional dielectric strength, excellent thermal overload resistance, and low dielectric losses. The final layer is a tough Polyvinyl Chloride (PVC) sheath that delivers robust protection against moisture, chemicals, abrasion, and sunlight, ensuring longevity in diverse installation conditions. This cable is the standard workhorse for main and sub-circuit power distribution in fixed installations indoors, in conduits, cable trays, or directly buried. The combination of XLPE insulation and a PVC sheath creates a perfect balance of electrical performance and physical durability. It is an economical and highly dependable choice for engineers and contractors seeking a proven solution for transmitting electrical energy safely and efficiently at low voltage levels, fully meeting the requirements of modern electrical infrastructure.
