Multicore RVV Flexible Household Power Wiring
Multicore RVV Flexible Household Power Wiring
100m/Roll
Different colors
Certification: ISO9001/ISO14001 /OHSAS18001/CCC
ODM&OEM: Yes
Transport Package: Roll or according to your requirements
- Ruiyang Group
- Shenyang, China
- 15 working days after payment is received
- 5000 kilometers per week
- Information
- Download

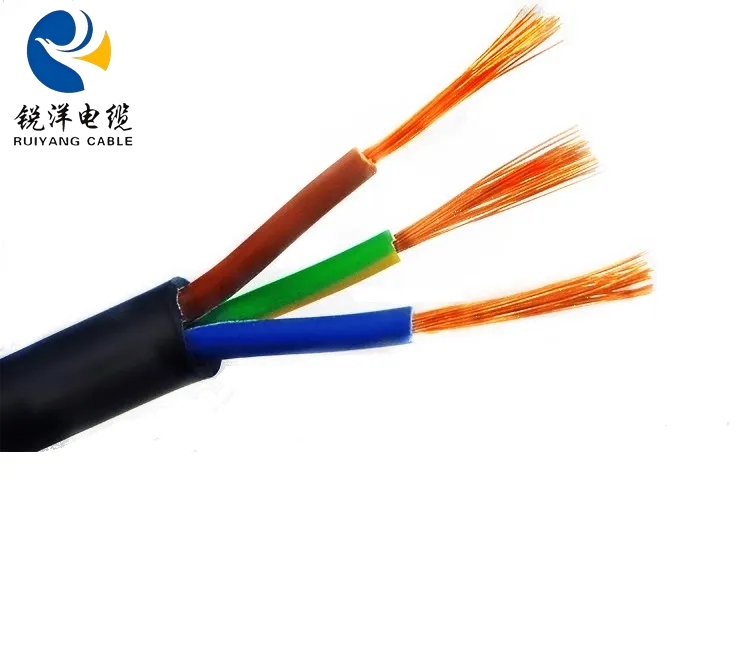

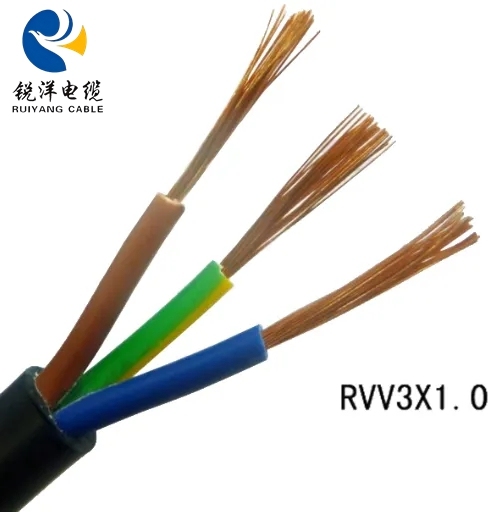

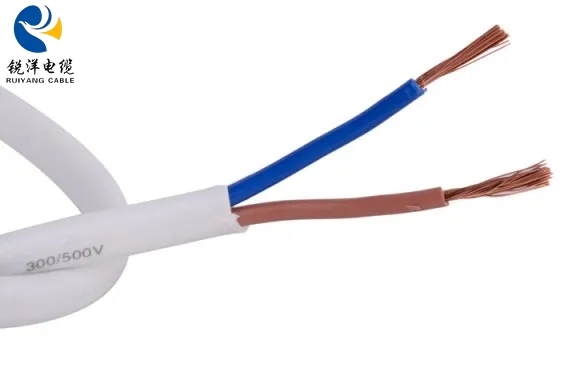

Multicore RVV Flexible Household Power Wiring
Product Description
Multicore RVV Flexible Household Power Wiring represents a fundamental component in modern electrical installations, engineered specifically to meet the demands of residential and light commercial power distribution. This versatile cable features multiple finely stranded tinned copper conductors, each independently insulated with high-quality polyvinyl chloride (PVC) and collectively protected by a durable outer PVC sheath. The stranded conductor design provides exceptional flexibility, allowing the cable to be easily routed through confined spaces, around corners, and in applications where slight movement or vibration may occur. With a standard voltage rating of 300/500V, the RVV cable delivers reliable electrical performance while offering superior resistance to mechanical stress, making it an indispensable solution for both permanent installations and semi-permanent connections where traditional rigid wiring proves impractical.
RVV Cable serves as the workhorse solution for numerous power distribution scenarios in modern built environments. Its primary applications include fixed wiring for wall sockets and lighting circuits, power supply cords for household appliances, extension lead construction, and internal wiring for electrical cabinets and control panels. The cable's flexibility makes it particularly valuable for connecting movable lighting fixtures, powering workshop equipment, and installing under-cabinet lighting systems where rigid cables would be difficult to maneuver. In light commercial settings, RVV wiring finds application in retail display lighting, office equipment connections, and temporary power distribution for events or exhibitions. Available in various core configurations and conductor sizes, this cable provides installers with a standardized, cost-effective solution that balances performance requirements with practical installation considerations, making it one of the most universally deployed wiring products for low-voltage power delivery in everyday environments.
Use characteristics
1. If the finished insulation core and finished power line are immersed in warm water at 20±5 °C for one hour, they shall withstand the specified AC 50 Hz immersion voltage test.
2. The wire demonstrates excellent electrical insulation properties, mechanical strength, and flame retardancy, ensuring safety and reliability during use. The producer’s name, model, and rated voltage must be clearly marked on the surface of the finished power line, in compliance with insulation and sheath delivery requirements.
Related products
| Model | Name | Voltage(V) | Nominal section(mm2) | Number/diameter of core (mm) |
| RV | Copper core PVC insulation jointed flexible line | 300/500 | 0.3 to 1.0 | 16/0.15 to 32/0.2 |
| 300/500 | 1.5 to 10 | 30/0.25 to 80/0.30 | ||
| RVB | Copper core PVC insulation paralled jonted flexible line | 300/300 | 2×0.3 to 2×1.0 | 2×16/0.15 to 2×32/0.20 |
| RVS | Copper core PVC insulation twisted joint flexible line | 300/300 | 2×0.3 to 2×0.75 | 2×16/0.15 to 2×32/0.15 |
| RVV | Copper core PVC insulation sheath paralled joint flexible line | 300/500 | 2×0.75 to 5×2.5 | 2×24/0.2 to 5×49/0.25 |
| RVVB | Copper core PVC insulation sheath paralled joint flexible line | 300/300 | 2×0.5 to 2×0.75 | 2×16/0.2 to 2×24/0.2 |
| RV-105 | Copper core heat-resistance 105 PVC insulation joint flexible line | 450/750 | 0.5 to 6 | 16/0.2 to 84/0.30 |
Company profile
Applications
Product categories
Production process
Product packaging
Our Services
1. Quickly and professional response.
2. China manufacturer with 8 years experience.
3. Excellent quality with reasonable price.
4. Sufficient support for our tendering representatives.
5. OEM service available based on official & legal authorization.
6. Strict quality control system.
7. Faster lead time than our competitors.
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10. 12 months quality guarantee after delivery.
Served Customers
FAQ
Q1: What kind of guarantee do you provide?
A1: 1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the cable which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
