Multicore STA Screened PVC Sheath Control Cable

Control Cable
0.45/0.75kv Copper Conductor
Specification pvc copper stranded conductor shift multicore control cable
ISO9001/ISO14001 /OHSAS18001/CCC
ODM&OEM
Strict quality control system.

  • Ruiyang Group
  • Shenyang
  • 15 Working days after received payment
  • 5000 Kilometers per Week
  • Information
  • Download

 Product Description

Control Cable

PVC insulated sheath control cable used as connecting wire of various kinds of electrical, instrumentation and automatic device, it plays a role in transmission of controls, signals and other electrical energy. PVC insulated sheath control cable is the 450/750V level, it’s conductor cross-section is larger, and big controlling current may pass it. Signal cable is 250V level, it’s conductor cross-section is smaller, it mainly used for transmitting signals or measuring with a low current. But this two kinds of products have no significant difference in the structure,so they can be used simultaneously in a certain range. In the industrial and mining enterprises, they are often used in a multi-core control and signal cable, plays a role in transmission of controls and signals at the same time. With the improvement of agricultural and industrial automation, the demand for such products will be more and more widely.

The using property of PVC insulated sheath control cable complies with the requirement of GB/T9330-2008.


ModelNameNo.of cores × sectional area(mm2)Main applications
KVVCopper conductor PVC Insulated and sheathed control cable2×0.75 to 61×2.5For laying indoors,in trenches and in ducsts,For fixed installation
KVVPCopper conductor PVC Insulated & sheathed copper wire braiding sereened control cable2×0.75 to 61×2.5For laying indoors,in trenches and in ducsts,For fixed installation
KVVP2Copper conductor PVC Insulated and sheathed control cable with steel tape shidld4×0.75 to 61×2.5For laying indoors,in trenches and in ducsts,For fixed installation
KVV22Copper conductor PVC Insulated and sheathed control cable with steel tape armmour4×2.5 to 61×2.5For laying indoors,in trenches,in ducsts and in ground,able to withstand heavier mechanical foree,and for fixed installation
KVVRCopper conductor PVC Insulated flexobe control cable4×0.5 to 61×2.5For laying indoors,,movable and flexible
ZR-KVVRPCopper conductor PVC insulated & sheathed copper wire braiding sereened flesxible control cable4×0.5 to 61×2.5For laying indoors with capabillity of moving and screening
ZR-KVVCopper conductor PVC Insulated and sheathed flame retardant control cable2×0.75 to 61×2.5For laying indoors in trenches,in ducts and for fixed instalation,the cable should be flame retardance
ZR-KVVP2Copper conductor PVC Insulated and sheathed flame retardantcontrol cable with steel tape shield4×0.75 to 61×2.5For laying indoors in trenches,in ducts and for fixed instalation,the cable should be flame retardance
ZR-KVV22Copper conductor PVC Insulated and sheathed flameretardant control cable with steel tape armour4×2.5 to 61×2.5Copper conductor PVC Insufated and underground,the cable should be flamerelardance and able to bear beavier extermal mechanical force,an for fixed installatin
ZR-KVVRCopper conductor PVC Insulated and sheathed flameretardant flameretardant flexobe control cable4×0.5 to 61×2.5For laying indoors ,and the cable should be falme-reatardant flexible and
Production Process

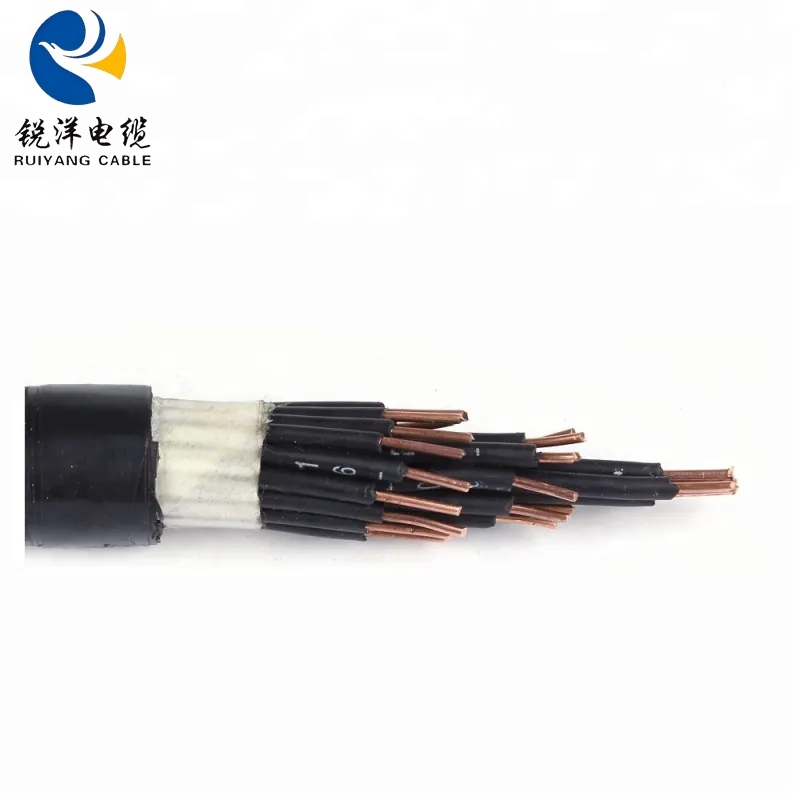

SY Control Cable

Company Information

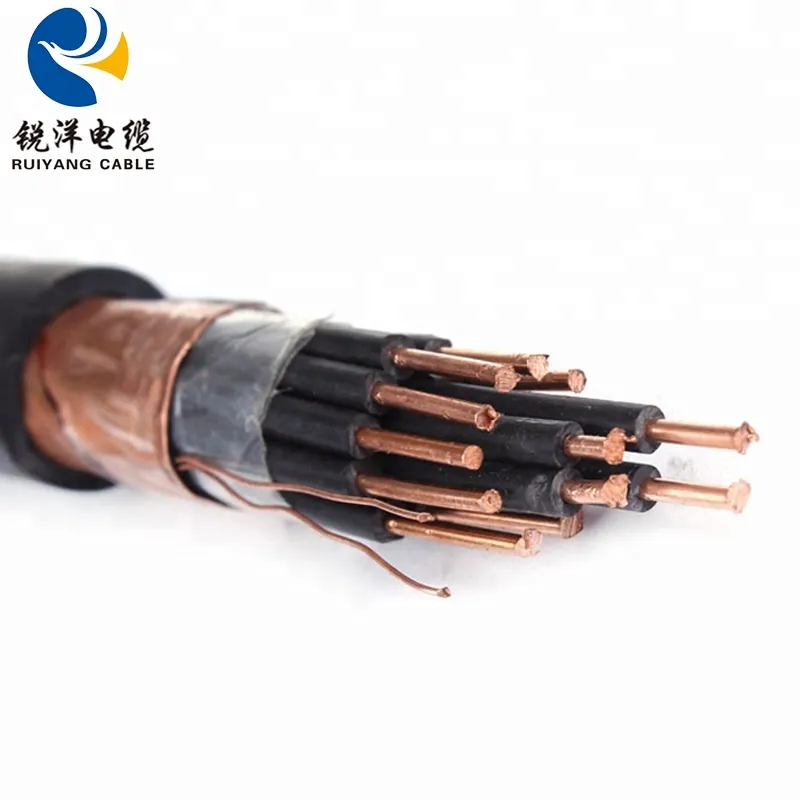

PVC Sheathed Cable


Application

Control Cable

Fair2016


Our Services

1.Quickly and professional response

2. China manufacturer with 8 years experience

3. Excellent quality with reasonable price.

4. Sufficient support for our tendering representatives.

5. OEM service available based on official & legal authorization.

6. Strict quality control system.

7. Faster lead time than our competitors.

8. Cable solutions to your particular requirements.

9. Free sample is available with economic express fee.

10.12 months quality guarantee after delivery.


Served Customers

SY Control Cable

FAQ

Q1: What kind of guarantee do you provide ?
A1: 1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the cable which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
