AI in Cable Accessory Inspection: From Reactive Repair to Predictive Intelligence
2025-12-31 16:41Cable terminations and joints—the vital accessories connecting cable segments to equipment or each other—are often the weakest links in power and data networks. Hidden within enclosures or underground, they can suffer from partial discharge (PD), insulation degradation, poor contacts, and moisture ingress, leading to catastrophic failures, unplanned downtime, and safety hazards. Traditional inspection relies on periodic manual checks, thermographic surveys, or PD measurements, which are time-consuming, interpretation-dependent, and often reactive. Artificial Intelligence (AI) is now transforming this field, turning inspection from a scheduled task into a continuous, predictive, and highly precise science.
The AI Toolkit: Core Technologies in Inspection
AI is not a single tool but a suite of technologies applied to data from various sensors.
Computer Vision (CV): AI algorithms analyze images from drones, robots, or fixed cameras to detect physical anomalies like oil leakage, corrosion, cracking, or misplaced components on outdoor terminations. They can identify issues faster and more consistently than the human eye, even in poor lighting or challenging angles.
Machine Learning (ML) for Signal Analysis: This is the core for diagnosing electrical faults. ML models are trained on vast datasets of ultrasonic and ultra-high-frequency (UHF) signals generated by partial discharge activity. They learn to distinguish between harmful discharge types (e.g., surface discharge, voids) and electrical noise, and can pinpoint the exact type and severity of insulation defects.
Deep Learning & Pattern Recognition: For analyzing complex patterns in thermal imaging data. AI can detect abnormal heat signatures at connection points long before a hotspot becomes critical, predicting failure based on subtle temperature trends rather than fixed thresholds.
Natural Language Processing (NLP): AI can process decades of maintenance logs, repair reports, and inspection notes, uncovering hidden correlations between environmental conditions, accessory types, and failure modes to improve future designs and maintenance schedules.
How It Works: The AI-Powered Inspection Pipeline
The application follows a systematic, data-driven pipeline:
Data Acquisition: Sensors (acoustic, UHF, thermal, visual) are deployed via handheld devices, robots, or permanent online monitoring systems installed near critical accessories.
Data Fusion & Processing: AI algorithms synchronize and pre-process heterogeneous data (e.g., correlating a thermal anomaly with a specific UHF signal pattern).
Feature Extraction & Diagnosis: The AI model extracts key features (signal frequency, magnitude, image texture) and compares them against its trained knowledge base to deliver a diagnostic conclusion: e.g., *"Severe internal PD detected at the stress cone of Termination A-12, confidence 96%. Recommended action: Plan replacement within 30 days."*
Prioritization & Decision Support: The system doesn't just find faults; it prioritizes them based on severity, asset criticality, and risk, generating optimized maintenance work orders for human engineers.
Tangible Benefits: Transforming Maintenance Economics
The shift to AI-driven inspection delivers measurable value across the board:
From Periodic to Continuous Monitoring: Permanent sensors with AI analysis enable 24/7 health monitoring, moving beyond snapshots to a continuous "health ECG" for critical assets.
Enhanced Accuracy & Reduced False Alarms: AI dramatically improves the signal-to-noise ratio in diagnostics, minimizing false positives from environmental interference and ensuring crews address real problems.
Predictive Maintenance & Extended Lifespan: By identifying degradation trends early, utilities can transition from run-to-failure or scheduled replacement to predictive interventions, extending accessory life by years and avoiding catastrophic failures.
Improved Safety & Efficiency: Inspections in hazardous or hard-to-reach locations (e.g., high-voltage substations, tunnels) can be performed remotely via drones or robots, enhancing technician safety and reducing inspection time by up to 70%.
Knowledge Preservation & Standardization: AI systems capture and codify the expertise of veteran engineers, ensuring consistent, high-quality inspection standards across all teams and locations.
Current Applications & Real-World Deployments
AI is already moving from pilot projects to operational deployment:
Utility Grids: Major utilities use AI-powered drones with CV and thermal cameras to inspect thousands of overhead line terminations and substation connections annually.
Underground Cable Networks: Mobile PD mapping systems with integrated AI analysis are used to patrol underground cable routes, pinpointing faulty joints without excavation.
Industrial Plants: Fixed UHF sensor arrays with real-time AI analysis monitor critical MV/HV terminations in oil & gas refineries or data centers, providing early warnings.
Quality Control in Manufacturing: AI vision systems inspect newly assembled cable accessories on production lines for manufacturing defects before shipment.
Challenges and the Road Ahead
Despite its promise, adoption faces hurdles:
Data Quality & Quantity: Training robust AI models requires vast amounts of accurately labeled historical fault data, which can be scarce.
Initial Investment & Integration: The cost of sensors, communication networks, and software integration into existing asset management systems can be significant.
Human-in-the-Loop: The most effective systems augment, not replace, human expertise. Final decisions and complex edge cases still require skilled engineers.
The future lies in edge AI, where processing occurs on the sensor device itself for faster response, and digital twins, where a virtual model of the cable network, fed by real-time AI diagnostics, allows for simulation and optimization of the entire system's performance.
AI is not merely an upgrade to existing tools; it represents a paradigm shift in how we manage cable infrastructure. By embedding intelligence directly into the inspection process, we are moving towards self-diagnosing, self-reporting cable systems. This transition promises unprecedented levels of grid reliability, safety, and efficiency, ensuring that the critical but often overlooked cable accessories no longer remain the silent point of failure, but become intelligent nodes in a resilient energy network.

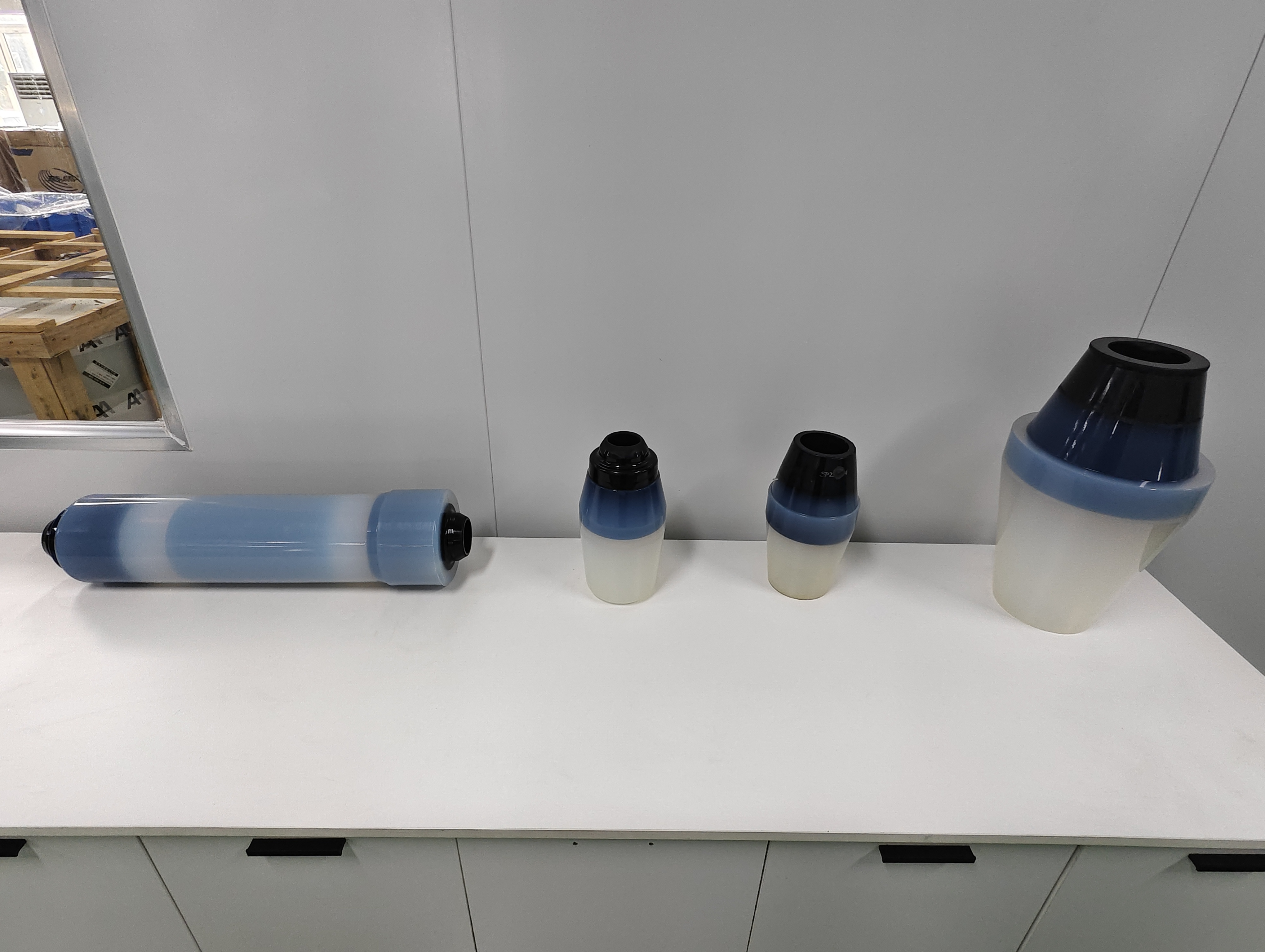

>>> Ruiyang Group's Cable Accessories
